RL4CO Quickstart Notebook¶

In this notebooks we will train the AttentionModel (AM) on the TSP environment for 20 nodes. On a GPU, this should less than 2 minutes! 🚀

Alt text

Installation¶

[1]:

## Uncomment the following line to install the package from PyPI
## You may need to restart the runtime in Colab after this
## Remember to choose a GPU runtime for faster training!

# !pip install rl4co

Imports¶

[1]:

%load_ext autoreload
%autoreload 2

import sys; sys.path.append(2*"../")


import torch

from rl4co.envs import TSPEnv
from rl4co.models.zoo.am import AttentionModel
from rl4co.utils.trainer import RL4COTrainer

2023-07-23 00:10:45.945252: I tensorflow/core/util/port.cc:110] oneDNN custom operations are on. You may see slightly different numerical results due to floating-point round-off errors from different computation orders. To turn them off, set the environment variable `TF_ENABLE_ONEDNN_OPTS=0`.
2023-07-23 00:10:45.966170: I tensorflow/core/platform/cpu_feature_guard.cc:182] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: AVX2 AVX512F AVX512_VNNI AVX512_BF16 FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.
2023-07-23 00:10:46.298714: W tensorflow/compiler/tf2tensorrt/utils/py_utils.cc:38] TF-TRT Warning: Could not find TensorRT

Environment, Model and LitModule¶

[3]:

# RL4CO env based on TorchRL
env = TSPEnv(num_loc=20)

# Model: default is AM with REINFORCE and greedy rollout baseline
model = AttentionModel(env,
                       baseline='rollout',
                       train_data_size=100_000,
                       val_data_size=10_000)
trainer = RL4COTrainer(max_epochs=3)

/home/botu/miniconda3/envs/rl4co/lib/python3.10/site-packages/lightning/pytorch/utilities/parsing.py:196: UserWarning: Attribute 'env' is an instance of `nn.Module` and is already saved during checkpointing. It is recommended to ignore them using `self.save_hyperparameters(ignore=['env'])`.
  rank_zero_warn(
/home/botu/miniconda3/envs/rl4co/lib/python3.10/site-packages/lightning/pytorch/utilities/parsing.py:196: UserWarning: Attribute 'policy' is an instance of `nn.Module` and is already saved during checkpointing. It is recommended to ignore them using `self.save_hyperparameters(ignore=['policy'])`.
  rank_zero_warn(
Using 16bit Automatic Mixed Precision (AMP)
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
IPU available: False, using: 0 IPUs
HPU available: False, using: 0 HPUs

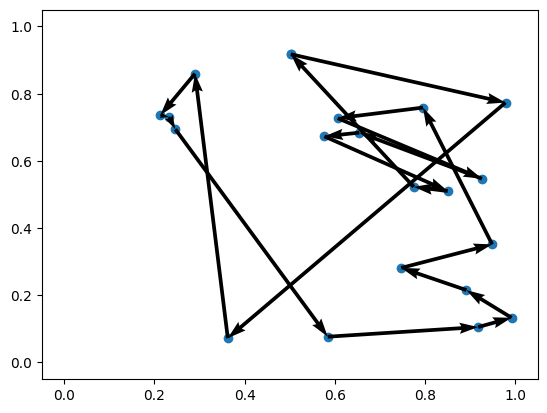

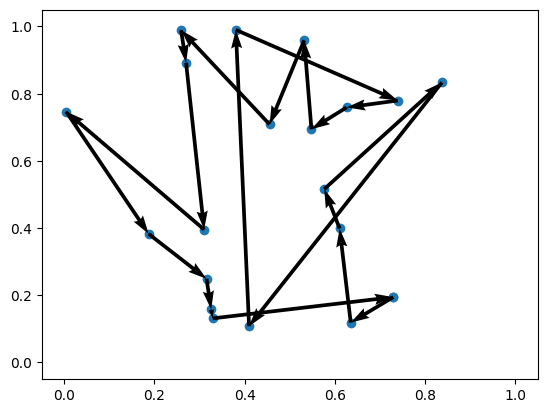

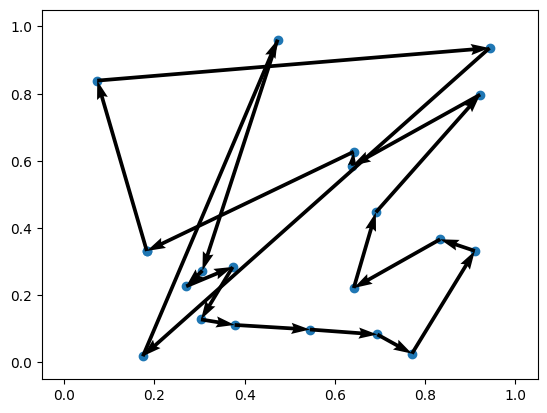

Test greedy rollout with untrained model and plot¶

[4]:

# Greedy rollouts over untrained model
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
td_init = env.reset(batch_size=[3]).to(device)
model = model.to(device)
out = model(td_init, phase="test", decode_type="greedy", return_actions=True)

# Plotting
print(f"Tour lengths: {[f'{-r.item():.2f}' for r in out['reward']]}")
for td, actions in zip(td_init, out['actions'].cpu()):
    env.render(td, actions)

Tour lengths: ['6.30', '6.34', '7.38']

../_images/_collections_1-quickstart_10_1.png

../_images/_collections_1-quickstart_10_2.png

../_images/_collections_1-quickstart_10_3.png

Trainer¶

The RL4CO trainer is a wrapper around PyTorch Lightning’s Trainer class which adds some functionality and more efficient defaults

[5]:

from rl4co.utils.trainer import RL4COTrainer

trainer = RL4COTrainer(
    max_epochs=3,
    accelerator="gpu",
    logger=None,
)

Using 16bit Automatic Mixed Precision (AMP)
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
IPU available: False, using: 0 IPUs
HPU available: False, using: 0 HPUs

Fit the model¶

[6]:

trainer.fit(model)

val_file not set. Generating dataset instead
test_file not set. Generating dataset instead
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]

  | Name     | Type                 | Params
--------------------------------------------------
0 | env      | TSPEnv               | 0
1 | policy   | AttentionModelPolicy | 710 K
2 | baseline | WarmupBaseline       | 710 K
--------------------------------------------------
1.4 M     Trainable params
0         Non-trainable params
1.4 M     Total params
5.681     Total estimated model params size (MB)

/home/botu/miniconda3/envs/rl4co/lib/python3.10/site-packages/lightning/pytorch/trainer/connectors/data_connector.py:432: PossibleUserWarning: The dataloader, val_dataloader, does not have many workers which may be a bottleneck. Consider increasing the value of the `num_workers` argument` (try 32 which is the number of cpus on this machine) in the `DataLoader` init to improve performance.
  rank_zero_warn(
/home/botu/miniconda3/envs/rl4co/lib/python3.10/site-packages/lightning/pytorch/trainer/connectors/data_connector.py:432: PossibleUserWarning: The dataloader, train_dataloader, does not have many workers which may be a bottleneck. Consider increasing the value of the `num_workers` argument` (try 32 which is the number of cpus on this machine) in the `DataLoader` init to improve performance.
  rank_zero_warn(

`Trainer.fit` stopped: `max_epochs=3` reached.

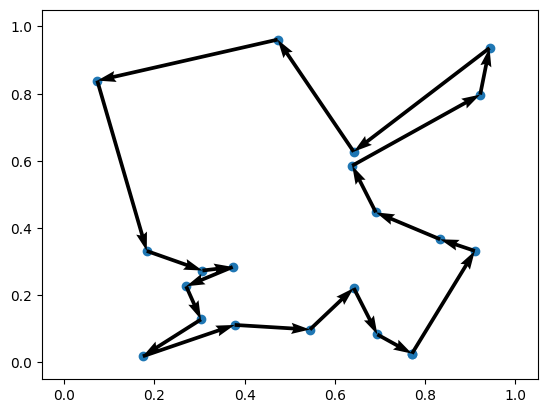

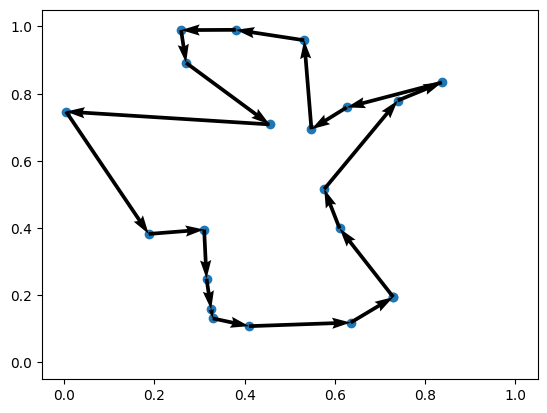

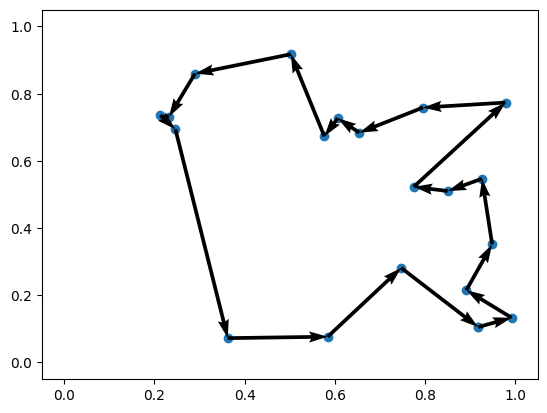

Testing¶

[7]:

# Greedy rollouts over trained model (same states as previous plot)
model = model.to(device)
out = model(td_init, phase="test", decode_type="greedy", return_actions=True)

# Plotting
print(f"Tour lengths: {[f'{-r.item():.2f}' for r in out['reward']]}")
for td, actions in zip(td_init, out['actions'].cpu()):
    env.render(td, actions)

Tour lengths: ['3.56', '3.69', '4.36']

../_images/_collections_1-quickstart_16_1.png

../_images/_collections_1-quickstart_16_2.png

../_images/_collections_1-quickstart_16_3.png

We can see that even after just 3 epochs, our trained AM is able to find much better solutions than the random policy! 🎉
